32TQFP ATmega8A-AUR Microcontroller IC MCU 8BIT 8KB FLASH

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

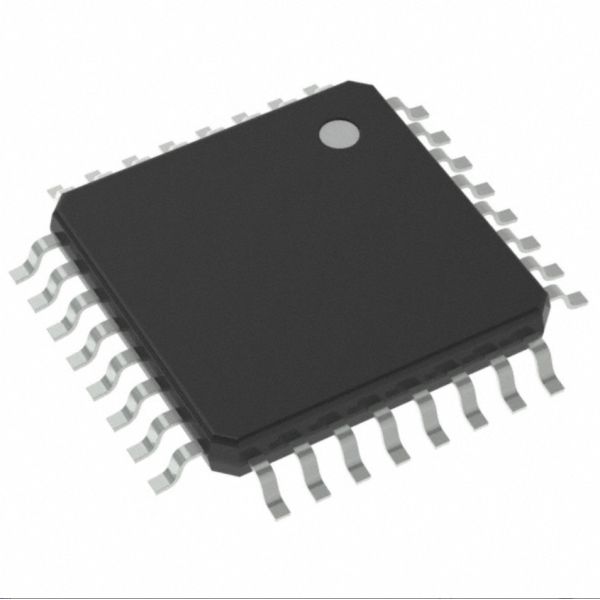

32TQFP ATmega8A-AUR Microcontroller IC MCU 8BIT 8KB FLASH

Brand Name : original

Model Number : ATMEGA8A-AUR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

RAM Size : 1K x 8

Voltage - Supply (Vcc/Vdd) : 2.7V ~ 5.5V

Data Converters : A/D 8x10b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 32-TQFP

Supplier Device PackageNumber : 32-TQFP (7x7)

Contact Now

ATmega8A-AUR Temperature Sensor Chip IC MCU 8BIT 8KB FLASH 32TQFP

AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 8KB (4K x 16) FLASH 32-TQFP (7x7)

Specifications of ATmega8A-AUR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Microchip Technology
Series AVR® ATmega
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Core Processor AVR
Core Size 8-Bit
Speed 16MHz
Connectivity I²C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 23
Program Memory Size 8KB (4K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 32-TQFP
Supplier Device Package 32-TQFP (7x7)
Base Product Number ATMEGA8

Features of ATmega8A-AUR

• High-performance, Low-power Microchip AVR® 8-bit Microcontroller
• Advanced RISC Architecture
- 130 Powerful Instructions – Most Single-clock Cycle Execution
- 32 x 8 General Purpose Working Registers
- Fully Static Operation
- Up to 16MIPS Throughput at 16MHz
- On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
- 8KBytes of In-System Self-programmable Flash program memory
- 512Bytes EEPROM
- 1KByte Internal SRAM
- Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
- Data retention: 20 years at 85°C/100 years at 25°C(1)
- Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
- Programming Lock for Software Security
• Microchip QTouch® library support
- Capacitive touch buttons, sliders and wheels
- Microchip QTouch and QMatrix™ acquisition
- Up to 64 sense channels

Applications of ATmega8A-AUR

• Peripheral Features
- Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
- One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
- Real Time Counter with Separate Oscillator
- Three PWM Channels
- 8-channel ADC in TQFP and VQFN package
• Eight Channels 10-bit Accuracy
- 6-channel ADC in PDIP package
• Six Channels 10-bit Accuracy
- Byte-oriented Two-wire Serial Interface
- Programmable Serial USART
- Master/Slave SPI Serial Interface
- Programmable Watchdog Timer with Separate On-chip Oscillator
- On-chip Analog Comparator
• Special Microcontroller Features
- Power-on Reset and Programmable Brown-out Detection
- Internal Calibrated RC Oscillator
- External and Internal Interrupt Sources
- Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• I/O and Packages
- 23 Programmable I/O Lines
- 28-lead PDIP, 32-lead TQFP, and 32-pad VQFN
• Operating Voltages
- 2.7 - 5.5V
- 0 - 16MHz
• Power Consumption at 4MHz, 3V, 25°C
- Active: 3.6mA
- Idle Mode: 1.0mA
- Power-down Mode: 0.5µA

Environmental & Export Classifications of ATmega8A-AUR.

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
