LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC

Brand Name : original

Model Number : LNBH26SPQR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Applications : Converter, Analog and Digital Satellite STB Receivers/SatTV

Voltage - Input : 8V ~ 16V

Number of Outputs : 2

Voltage - Output : 13V, 18V

Operating Temperature : 0°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 24-VFQFN Exposed Pad

Supplier Device Package : 24-QFN (4x4)

Contact Now

LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC

Specifications of LNBH26SPQR

TYPEDESCRIPTION
CategoryIntegrated Circuits (ICs)
Power Management (PMIC)
Special Purpose Regulators
MfrSTMicroelectronics
Series-
PackageTape & Reel (TR)
Cut Tape (CT)
ApplicationsConverter, Analog and Digital Satellite STB Receivers/SatTV
Voltage - Input8V ~ 16V
Number of Outputs2
Voltage - Output13V, 18V
Operating Temperature0°C ~ 85°C
Mounting TypeSurface Mount
Package / Case24-VFQFN Exposed Pad
Supplier Device Package24-QFN (4x4)
Base Product NumberLNBH26


Specifications of LNBH26SPQR

• Complete interface between LNB and I²C bus
• Built-in DC-DC converter for single 12 V supply operation and high efficiency (typ. 93% @ 0.5 A)
• Selectable output current limit by external resistor
• Compliant with main satellite receiver output voltage specification (15 programmable levels)
• Accurate built-in 22 kHz tone generator suits widely accepted standards
• 22 kHz tone waveform integrity guaranteed at no-load condition as well
• Low drop post regulator and high efficiency step-up PWM with integrated power NMOS allowing low power losses
• LPM function (low power mode) to reduce dissipation
• Overload and overtemperature internal protection with I²C diagnostic bits
• LNB short-circuit dynamic protection
• +/- 4 kV ESD tolerant on output power pins



Applications of LNBH26SPQR
• STB satellite receivers
• TV satellite receivers
• PC card satellite receivers



Environmental & Export Classifications of LNBH26SPQR

ATTRIBUTEDESCRIPTION
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8542.39.0001


LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC































Cheap LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC for sale

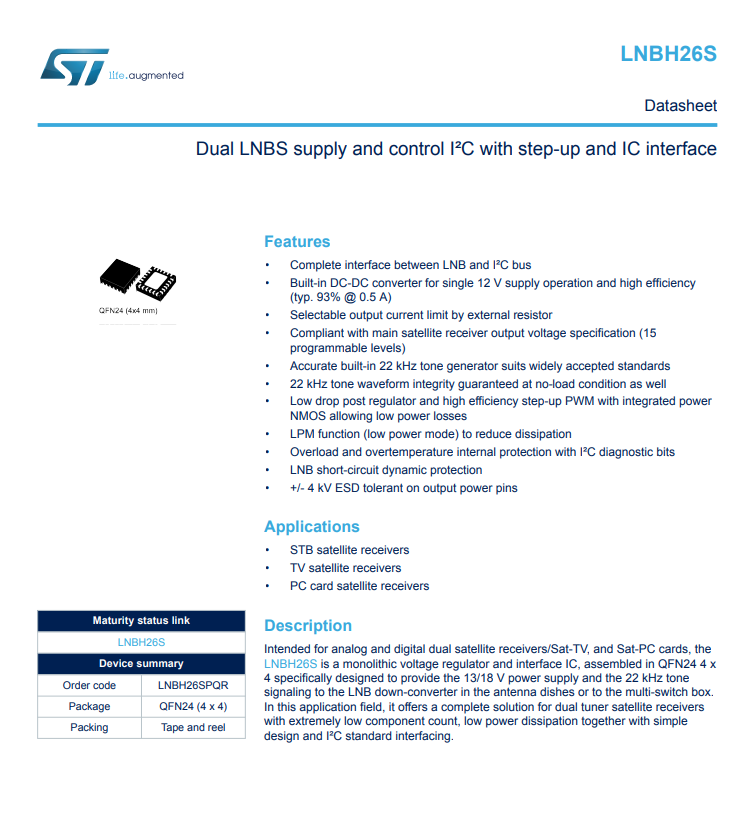

LNBH26SPQR Converter Satellite STB Receivers/SatTV Voltage Regulator IC Images
