MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB

Name: MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16Bit 12MHz 16KB
Brand: original
Price: 1 USD

Brand Name : original

Model Number : MSP430AFE253IPWR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Core Processor : MSP430 CPU16

Core Size : 16-Bit

Speed : 12MHz

Connectivity : SPI, UART/USART

Peripherals : Brown-out Detect/Reset, PWM, WDT

Number of I/O : 11

Program Memory Size : 16KB (16K x 8)

Program Memory Type : FLASH

RAM Size : 512 x 8

Voltage - Supply (Vcc/Vdd) : 1.8V ~ 3.6V

Contact Now

MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB

Specifications of MSP430AFE253IPWR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Embedded
	Microcontrollers
Mfr	Texas Instruments
Series	MSP430F2xx
Package	Tape & Reel (TR)
	Cut Tape (CT)
Core Processor	MSP430 CPU16
Core Size	16-Bit
Speed	12MHz
Connectivity	SPI, UART/USART
Peripherals	Brown-out Detect/Reset, PWM, WDT
Number of I/O	11
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Data Converters	A/D 3x24b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	24-TSSOP
Base Product Number	MSP430AFE253

Features of MSP430AFE253IPWR

• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
– Active Mode: 220 µA at 1 MHz, 2.2 V
– Standby Mode: 0.5 µA
– Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake-up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, up to 12-MHz System Clock
• Basic Clock Module Configurations
– Internal Frequencies up to 12 MHz With Two Calibrated Frequencies
– Internal Very-Low-Power Low-Frequency (LF) Oscillator
– High-Frequency (HF) Crystal up to 16 MHz
– Resonator
– External Digital Clock Source

Applications of MSP430AFE253IPWR

• Single-Phase Electricity Meters
• Digital Power Monitoring
• Sensor Applications

Environmental & Export Classifications of MSP430AFE253IPWR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001

MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB

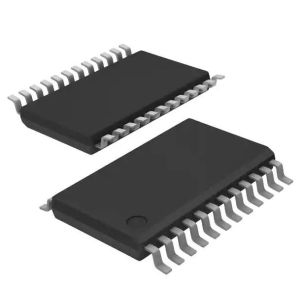

MSP430AFE253IPWR MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 12MHz 16KB Images
